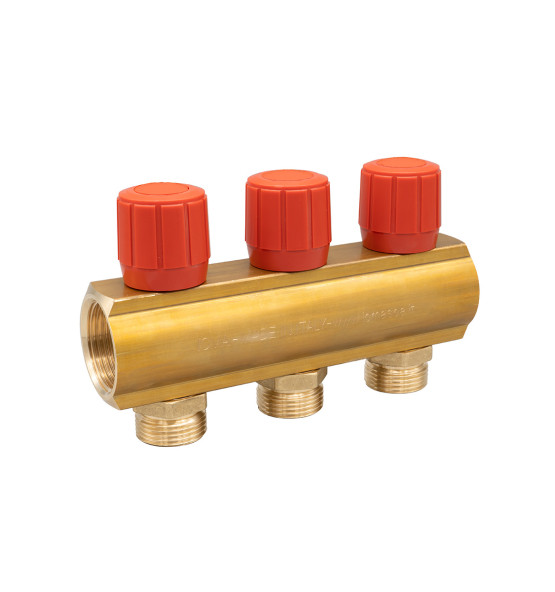

Distribution manifold with shut-off valves

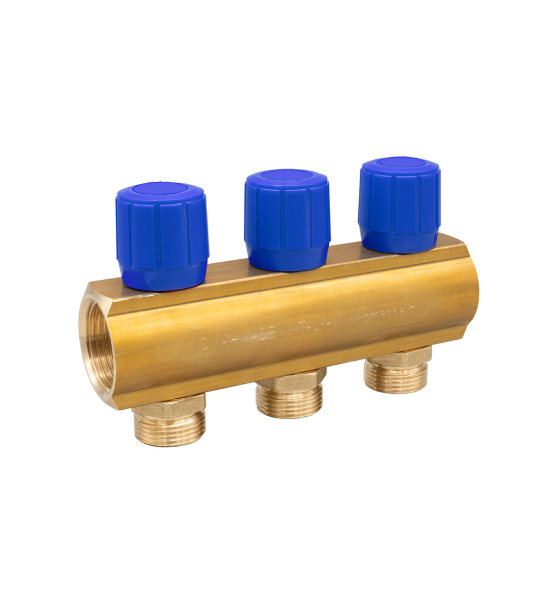

Distribution manifold with shut-off valves - Image 2

Distribution manifold with shut-off valves

_____________________________________________________________________________________________

Technical Datasheet _____________________________________________________________________________________________ codes and dimensions

Head Connection	Outlets	Connection Thread
1″	4	1/2”
1″	5	1/2”
1″	6	1/2”
1″	7	1/2”
1″	8	1/2”
1″	9	1/2”
1″	10	1/2”
1″	11	1/2”
1″	12	1/2”
1”1/4	4	1/2”
1”1/4	5	1/2”
1”1/4	6	1/2”
1”1/4	7	1/2”
1”1/4	8	1/2”
1”1/4	9	1/2”
1”1/4	10	1/2”
1”1/4	11	1/2”
1”1/4	12	1/2”
